Android蓝牙通信开发实例演示

< 上一页Android蓝牙开发 WIFI是什么下一页 >
在上一节《Android蓝牙（Bluetooth）连接与通讯》教程中我们已经了解如何探测并开启手机的蓝牙功能、蓝牙服务搜索和建立蓝牙连接。下面我们编写实例 BluetoothDemo。

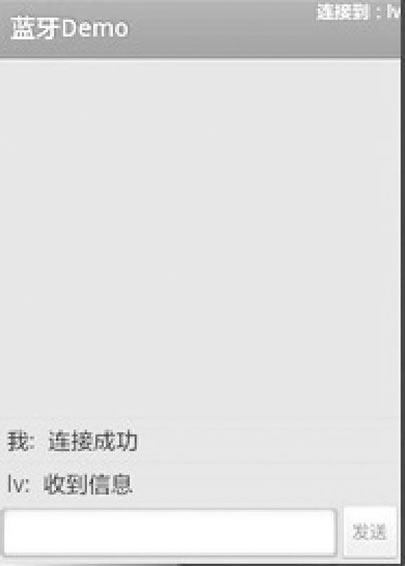

实例 BluetoothDemo 演示了使用蓝牙功能对其他蓝牙设备进行搜寻、连接并进行数据传输的过程。该应用程序的运行效果如图 1 所示。

实例BluetoothDemo的运行效果
图 1  实例 BluetoothDemo 的运行效果

该视图整体使用 LinearLayout 布局，使用 ListView 显示聊天内容，下方的横向 LinearLayout 布局中放置了一个用于输入文本的 EditText 和一个按钮。对应的布局文件 main.xml 的内容如下：
  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  4.    xmlns:myapp="http://schemas.android.com/apk/res/android.BluetoothChat"
  5.    android:layout_width="match_parent"
  6.    android:layout_height="match_parent"
  7.    android:background="@drawable/bg01">
  8.
  9.    <ListView
  10.       android:id="@+id/in"
  11.       android:layout_width="match_parent"
  12.       android:layout_height="match_parent"
  13.       android:stackFromBottom="true"
  14.       android:transcriptMode="alwaysScroll"
  15.       android:layout_weight="1"/>
  16.
  17.    <LinearLayout
  18.       android:layout_width="match_parent"
  19.       android:layout_height="wrap_parent"
  20.       android:orientation="horizontal" >
  21.
  22.       <EditText
  23.          android:id="@+id/edit_text_out"
  24.          android:layout_width="wrap_content"
  25.          android:layout_height="wrap_content"
  26.          android:layout_weight="1"
  27.          android:layout_gravity="bottom"/>
  28.       <ListView
  29.          android:id="@+id/button_send"
  30.          android:layout_width="wrap_content"
  31.          android:layout_height="wrap_content"
  32.          android:text="@string/send" />
  33.    </LinearLayout>
  34. </LinearLayout>
实例 BluetoothDemo 的 AndroidManifest.xml 文件的内容如下：
  1. <?xml version="1.0" encoding="utf-8"?>
  2.
  3. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  4.     package="introduction.android.BluetoothChat"
  5.     android:versionCode="1"
  6.     android:versionName="1.0">
  7.
  8.     <uses-sdk android:minSdkVersion="14" />
  9.
  10.     <uses-permission android:name="android.permission.BLUE TOOTH_ADMIN">
  11.     <uses-permission android:name="android.permission.BLUETOOTH" />
  12.
  13.     <application
  14.         android:icon="@drawable/app_icon"
  15.         android:label="@string/app_name">
  16.
  17.         <activity
  18.             android:name=".BluetoothChat"
  19.             android:configChanges="orientation\keyboardHidden"
  20.             android:label="@string/app_name">
  21.             <intent-filter>
  22.                 <action android:name="android.in tent.action.MAIN" />
  23.                 <category android:name="android.intent.category.LAUNCHER" />
  24.             </intent-filter>
  25.         </activity>
  26.
  27.         <activity
  28.             android:name=".DeviceList"
  29.             android:configChanges="orientation\keyboardHidden"
  30.             android:label="@string/select_device"
  31.             android:theme="@android:style/Theme.Dialog" />
  32.     </application>
  33. </manifest>
实例 BluetoothDemo 的主 Activity 为 BluetoothChat，其对应的文件内容如下：
  1. package introduction.android.mydbdemo;
  2.
  3. import android.app.Activity;
  4. import android.bluetooth.BluetoothAdapter;
  5. import android.bluetooth.BluetoothDevice;
  6. import android.content.Intent;
  7. import android.os.Bundle;
  8. import android.os.Handler;
  9. import android.os.Message;
  10. import android.view.KeyEvent;
  11. import android.view.Menu;
  12. import android.view.MenuInflater;
  13. import android.view.MenuItem;
  14. import android.view.View;
  15. import android.view.View.OnClickListener;
  16. import android.view.Window;
  17. import android.view.inputmethod.EditorInfo;
  18. import android.widget.ArrayAdapter;
  19. import android.widget.Button;
  20. import android.widget.EditText;
  21. import android.widget.ListView;
  22. import android.widget.TextView;
  23. import android.widget.Toast;
  24.
  25. public class BluetoothChat extends Activity {
  26.
  27.     public static final int MESSAGE_STATE_CHANGE = 1;
  28.     public static final int MESSAGE_READ = 2;
  29.     public static final int MESSAGE_WRITE = 3;
  30.     public static final int MESSAGE_DEVICE_NAME = 4;
  31.     public static final int MESSAGE_TOAST = 5;
  32.     public static final String DEVICE_NAME = "device_name";
  33.     public static final String TOAST = "toast";
  34.     private static final int REQUEST_C0NNECT_DEVICE = 1;
  35.     private static final int REQUEST_ENABLE_BT = 2;
  36.     private TextView mTitle;
  37.     private ListView mConversationView;
  38.     private EditText mOutEditText;
  39.     private Button mSendButton;
  40.     private String mConnectedDeviceName = null;
  41.     private ArrayAdapter<String> mConversationArrayAdapter;
  42.     private StringBuffer mOutStringBuffer;
  43.     private BluetoothAdapter mBluetoothAdapter = null;
  44.     private ChatService mChatService = null;
  45.
  46.     @Override
  47.     public void onCreate(Bundle savedInstanceState) {
  48.         super.onCreate(savedInstanceState);
  49.
  50.         //设置窗口布局为自定义标题
  51.         requestWindowFeature(Window.FEATURE_CUSTOM_TITLE);
  52.         setContentView(R.layout.main);
  53.
  54.         //设置窗口标题为布局文件
  55.         getWindow().setFeatureInt(Window.FEATURE_CUSTOM_TITLE, R.layout.custom_title);
  56.         mTitle = (TextView) findViewById(R.id.title_left_text);
  57.         mTitle.setText(R.string.app_name);
  58.         mTitle = (TextView) findViewById(R.id.title_right_text);
  59.
  60.         // 得到本地蓝牙适配器
  61.         mBluetoothAdapter = BluetoothAdapter.getDefaultAdapter();
  62.
  63.         //若当前设备不支持蓝牙功能
  64.         if (mBluetoothAdapter == null) {
  65.             Toast.makeText(this, "蓝牙不可用", Toast.LENGTH_LONG).show();
  66.             finish();
  67.             return;
  68.         }
  69.     }
  70.
  71.     @Override
  72.     public void onStart() {
  73.         super.onStart();
  74.         if (!mBluetoothAdapter.isEnabled()) {
  75.             Intent enableIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
  76.             startActivityForResult(enableIntent, REQUEST_ENABLE_BT);
  77.         } else {
  78.             if (mChatService == null)
  79.                 setupChat();
  80.         }
  81.     }
  82.
  83.     @Override
  84.     public synchronized void onResume() {
  85.         super.onResume();
  86.         if (mChatService != null) {
  87.             if (mChatService.getState() == ChatService.STATE_NONE) {
  88.                 mChatService.start();
  89.             }
  90.         }
  91.     }
  92.
  93.     private void setupChat() {
  94.         mConversationArrayAdapter = new ArrayAdapter<String>(this, R.layout.message);
  95.         mConversationView = (ListView) findViewById(R.id.in);
  96.         mConversationView.setAdapter(mConversationArrayAdapter);
  97.         mOutEditText = (EditText) findViewById(R.id.edit_text_out);
  98.         mOutEditText.setOnEditorActionListener(mWriteListener);
  99.         mSendButton = (Button) findViewById(R.id.button_send);
  100.         mSendButton.setOnClickListener(new OnClickListener() {
  101.             public void onClick(View v) {
  102.                 TextView view = (TextView) findViewById(R.id.edit_text_out);
  103.                 String message = view.getText().toString();
  104.                 sendMessage(message);
  105.             }
  106.         });
  107.
  108.         mChatService = new ChatService(this, mHandler);
  109.         mOutStringBuffer = new StringBuffer("");
  110.     }
  111.
  112.     @Override
  113.     public synchronized void onPause() {
  114.         super.onPause();
  115.     }
  116.
  117.     @Override
  118.     public void onStop() {
  119.         super.onStop();
  120.     }
  121.
  122.     @Override
  123.     public void onDestroy() {
  124.         super.onDestroy();
  125.         if (mChatService != null)
  126.             mChatService.stop();
  127.     }
  128.
  129.     private void ensureDiscoverable() {
  130.         if (mBluetoothAdapter.getScanMode() != BluetoothAdapter.SCAN_MODE_CONNECTABLE_DISCOVERABLE) {
  131.             Intent discoverableIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_DISCOVERABLE);
  132.             discoverableIntent.putExtra(BluetoothAdapter.EXTRA_DISCOVERABLE_DURATION, 300);
  133.             startActivity(discoverableIntent);
  134.         }
  135.     }
  136.
  137.     private void sendMessage(String message) {
  138.         if (mChatService.getState() != ChatService.STATE_CONNECTED) {
  139.             Toast.makeText(this, R.string.not_connected, Toast.LENGTH_SHORT).show();
  140.             return;
  141.         }
  142.
  143.         if (message.length() > 0) {
  144.             byte[] send = message.getBytes();
  145.             mChatService.write(send);
  146.             mOutStringBuffer.setLength(0);
  147.             mOutEditText.setText(mOutStringBuffer);
  148.         }
  149.     }
  150.
  151.     private TextView.OnEditorActionListener mWriteListener = new TextView.OnEditorActionListener() {
  152.
  153.         public boolean onEditorAction(TextView view, int actionId, KeyEvent event) {
  154.             if (actionId == EditorInfo.IME_NULL && event.getAction() == KeyEvent.ACTION_UP) {
  155.                 String message = view.getText().toString();
  156.                 sendMessage(message);
  157.             }
  158.             return true;
  159.         }
  160.     };
  161.
  162.     private final Handler mHandler = new Handler() {
  163.         @Override
  164.         public void handleMessage(Message msg) {
  165.             switch (msg.what) {
  166.                 case MESSAGE_STATE_CHANGE:
  167.
  168.                     switch (msg.argl) {
  169.                         case ChatService.STATE_CONNECTED:
  170.                             mTitle.setText(R.string.title_connected_to);
  171.                             mTitle.append(mConnectedDeviceName);
  172.                             mConversationArrayAdapter.clear();
  173.                             break;
  174.                         case ChatService.STATE_CONNECTING:
  175.                             mTitle.setText(R.string.title_connecting);
  176.                             break;
  177.                         case ChatService.STATE_LISTEN:
  178.                         case ChatService.STATE_NONE:
  179.                             mTitle.setText(R.string.title_not_connected);
  180.                             break;
  181.                     }
  182.                     break;
  183.
  184.                 case MESSAGE_WRITE:
  185.                     byte[] writeBuf = (byte[]) msg.obj;
  186.                     String writeMessage = new String(writeBuf);
  187.                     mConversationArrayAdapter.add("我: " + writeMessage);
  188.                     break;
  189.
  190.                 case MESSAGE_READ:
  191.                     byte[] readBuf = (byte[]) msg.obj;
  192.                     String readMessage = new String(readBuf, 0, msg.argl);
  193.                     mConversationArrayAdapter.add(mConnectedDeviceName + ":" + readMessage);
  194.                     break;
  195.
  196.                 case MESSAGE_DEVICE_NAME:
  197.                     mConnectedDeviceName = msg.getData().getString(DEVICE_NAME);
  198.                     Toast.makeText(getApplicationContext(), "链接到" + mConnectedDeviceName, Toast.LENGTH_SHORT).show();
  199.                     break;
  200.                 case MESSAGE_TOAST:
  201.                     Toast.makeText(getApplicationContext(), msg.getData().getString(TOAST), Toast.LENGTH_SHORT).show();
  202.                     break;
  203.             }
  204.         }
  205.     };
  206.
  207.     public void onActivityResult(int requestCode, int resultCode, Intent data) {
  208.
  209.         switch (requestCode) {
  210.             case REQUEST_CONNECT_DEVICE:
  211.                 if (resultCode == Activity.RESULT_OK) {
  212.                     String address = data.getExtras().getString(DeviceList.EXTRA_DEVICE_ADDRESS);
  213.                     BluetoothDevice device = mBluetoothAdapter.getRemoteDevice(address);
  214.                     mChatService.connect(device);
  215.                 }
  216.                 break;
  217.             case REQUEST_ENABLE_BT:
  218.                 if (resultCode == Activity.RESULT_OK) {
  219.                     setupChat();
  220.                 } else {
  221.                     Toast.makeText(this, R.string.bt_not_enabled_leaving,
  222.                             Toast.LENGTH_SHORT).show();
  223.                     finish();
  224.                 }
  225.         }
  226.
  227.     }
  228.
  229.     @Override
  230.     public boolean onCreateOptionsMenu(Menu menu) {
  231.         MenuInflater inflater = getMenuInflater();
  232.         inflater.inflate(R.menu.option_menu, menu);
  233.         return true;
  234.     }
  235.
  236.     @Override
  237.     public boolean onOptionsItemSelected(MenuItem item) {
  238.         switch (item.getItemId()) {
  239.             case R.id.scan:
  240.                 Intent serverIntent = new Intent(this, DeviceList.class);
  241.                 startActivityForResult(serverIntent, REQUEST_CONNECT_DEVICE);
  242.                 return true;
  243.             case R.id.discoverable:
  244.                 ensureDiscoverable();
  245.                 return true;
  246.             case R.id.back:
  247.                 finish();
  248.                 System.exit(0);
  249.                 return true;
  250.         }
  251.         return false;
  252.     }
  253. }
Activity BluetoothChat 的 onCreate() 方法检查当前设备是否支持蓝牙功能，并得到本地的 BluetoothAdapter 设备。

在 onStart() 中检查是否启用了蓝牙功能，若未启用，则请求启用，然后通过 setupChat() 方法对界面中的控件进行初始化、增加单击监听器等，BluetoothChat 创建了 ChatService 对象，该对象在整个应用过程中存在，并完成了蓝牙连接的建立、消息发送与接收等功能。

ChatService.java 的代码如下：
  1. package introduction.android.BluetoothChat;
  2.
  3. import java.io.IOException;
  4. import java.io.InputStream;
  5. import java.io.OutputStream;
  6. import java.util.UUID;
  7.
  8. import android.bluetooth.BluetoothAdapter;
  9. import android.bluetooth.BluetoothDevice;
  10. import android.bluetooth.BluetoothServerSocket;
  11. import android.bluetooth.BluetoothSocket;
  12. import android.content.Context;
  13. import android.os.Bundle;
  14. import android.os.Handler;
  15. import android.os.Message;
  16.
  17. import introduction.android.mydbdemo.BluetoothChat;
  18.
  19. public class ChatService {
  20.
  21.     private static final String NAME = "BluetoothChat";
  22.     // UUID-->通用唯一识别码，能唯一辨识资讯
  23.     private static final UUID MY_UUID = UUID
  24.             .fromString("fa87c0d0-afac-llde-8a39-0800200c9a66");
  25.     private final BluetoothAdapter mAdapter;
  26.     private final Handler mHandler;
  27.     private AcceptThread mAcceptThread;
  28.     private ConnectThread mConnectThread;
  29.     private ConnectedThread mConnectedThread;
  30.
  31.     private int mState;
  32.     public static final int STATE_NONE = 0;
  33.     public static final int STATE_LISTEN = 1;
  34.     public static final int STATE_CONNECTING = 2;
  35.     public static final int STATE_CONNECTED = 3;
  36.
  37.     public ChatService(Context context, Handler handler) {
  38.         mAdapter = BluetoothAdapter.getDefaultAdapter();
  39.         mState = STATE_NONE;
  40.         mHandler = handler;
  41.     }
  42.
  43.     private synchronized void setState(int state) {
  44.         mState = state;
  45.         mHandler.obtainMessage(BluetoothChat.MESSAGE_STATE_CHANGE, state, -1).sendToTarget();
  46.     }
  47.
  48.     public synchronized int getState() {
  49.         return mState;
  50.     }
  51.
  52.     public synchronized void start() {
  53.
  54.         if (mConnectThread != null) {
  55.             mConnectThread.cancel();
  56.             mConnectThread = null;
  57.         }
  58.         if (mConnectedThread != null) {
  59.             mConnectedThread.cancel();
  60.             mConnectedThread = null;
  61.         }
  62.         if (mAcceptThread == null) {
  63.             mAcceptThread = new AcceptThread();
  64.             mAcceptThread.start();
  65.         }
  66.         setState(STATE_LISTEN);
  67.     }
  68.
  69.     //取消CONNECTING和CONNECTED状态下的相关线程，然后运行新的mConnectThread线程
  70.     public synchronized void connect(BluetoothDevice device) {
  71.         if (mState == STATE_CONNECTING) {
  72.             if (mConnectThread != null) {
  73.                 mConnectThread.cancel();
  74.                 mConnectThread = null;
  75.             }
  76.         }
  77.         if (mConnectedThread != null) {
  78.             mConnectedThread.cancel();
  79.             mConnectedThread = null;
  80.         }
  81.         mConnectThread = new ConnectThread(device);
  82.         mConnectThread.start();
  83.         setState(STATE_CONNECTING);
  84.     }
  85.
  86.     //开启一个ConnectedThread来管理对应的当前连接。之前先取消任意现存的mConnectThread、
  87.     //mConnectedThread 、mAcceptThread 线程，然后开启新 mConnectedThread ，传入当前刚刚接受的
  88.     //socket连接
  89.     //最后通过Handler来通知UI连接
  90.     public synchronized void connected(BluetoothSocket socket,
  91.                                        BluetoothDevice device) {
  92.
  93.         if (mConnectThread != null) {
  94.             mConnectThread.cancel();
  95.             mConnectThread = null;
  96.         }
  97.
  98.         if (mConnectedThread != null) {
  99.             mConnectedThread.cancel();
  100.             mConnectedThread = null;
  101.         }
  102.
  103.         if (mAcceptThread != null) {
  104.             mAcceptThread.cancel();
  105.             mAcceptThread = null;
  106.         }
  107.         mConnectedThread = new ConnectedThread(socket);
  108.         mConnectedThread.start();
  109.         Message msg = mHandler.obtainMessage(BluetoothChat.MESSAGE_DEVICE_NAME);
  110.         Bundle bundle = new Bundle();
  111.         bundle.putString(BluetoothChat.DEVICE_NAME, device.getName());
  112.         msg.setData(bundle);
  113.         mHandler.sendMessage(msg);
  114.         setState(STATE_CONNECTED);
  115.     }
  116.
  117.     //停止所有相关线程，设当前状态为NONE
  118.     public synchronized void stop() {
  119.         if (mConnectThread != null) {
  120.             mConnectThread.cancel();
  121.             mConnectThread = null;
  122.         }
  123.
  124.         if (mConnectedThread != null) {
  125.             mConnectedThread.cancel();
  126.             mConnectedThread = null;
  127.         }
  128.
  129.         if (mAcceptThread != null) {
  130.             mAcceptThread.cancel();
  131.             setState(STATE_NONE);
  132.         }
  133.     }
  134.
  135.     //在 STATE_CONNECTED 状态下，调用 mConnectedThread 里的 write 方法，写入 byte
  136.     public void write(byte[] out) {
  137.         ConnectedThread r;
  138.
  139.         synchronized (this) {
  140.             if (mState != STATE_CONNECTED)
  141.                 return;
  142.             r = mConnectedThread;
  143.         }
  144.         r.write(out);
  145.     }
  146.
  147.     //连接失败的时候处理，通知ui ,并设为STATE一LISTEN状态
  148.     private void connectionFailed() {
  149.         setState(STATE_LISTEN);
  150.         Message msg = mHandler.obtainMessage(BluetoothChat.MESSAGE_TOAST);
  151.         Bundle bundle = new Bundle();
  152.         bundle.putString(BluetoothChat.TOAST, "链接不到设备");
  153.         msg.setData(bundle);
  154.         mHandler.sendMessage(msg);
  155.     }
  156.
  157.     //当连接失去的时候，设为STATE_LISTEN状态并通知UI
  158.     private void connectionLost() {
  159.         setState(STATE_LISTEN);
  160.         Message msg = mHandler.obtainMessage(BluetoothChat.MESSAGE_TOAST);
  161.         Bundle bundle = new Bundle();
  162.         bundle.putString(BluetoothChat.TOAST, "设备链接中断");
  163.         msg.setData(bundle);
  164.         mHandler.sendMessage(msg);
  165.     }
  166.
  167.     //创建监听线程，准备接受新连接。使用阻塞方式调用BluetoothServerSocket.accept()
  168.     private class AcceptThread extends Thread {
  169.         private final BluetoothServerSocket mmServerSocket;
  170.
  171.         public AcceptThread() {
  172.             BluetoothServerSocket tmp = null;
  173.             try {
  174.                 tmp = mAdapter.listenUsingRfcommWithServiceRecord(NAME, MY_UUID);
  175.             } catch (IOException e) {
  176.
  177.             }
  178.             mmServerSocket = tmp;
  179.         }
  180.
  181.         public void run() {
  182.             setName("AcceptThread");
  183.             BluetoothSocket socket = null;
  184.             while (mState != STATE_CONNECTED) {
  185.                 try {
  186.                     socket = mmServerSocket.accept();
  187.                 } catch (IOException e) {
  188.                     break;
  189.                 }
  190.                 if (socket != null) {
  191.                     synchronized (ChatService.this) {
  192.                         switch (mState) {
  193.                             case STATE_LISTEN:
  194.                             case STATE_CONNECTING:
  195.                                 connected(socket, socket.getRemoteDevice());
  196.                                 break;
  197.                             case STATE_NONE:
  198.                             case STATE_CONNECTED:
  199.                                 try {
  200.                                     socket.close();
  201.                                 } catch (IOException e) {
  202.                                 }
  203.                                 break;
  204.                         }
  205.                     }
  206.                 }
  207.             }
  208.         }
  209.
  210.         public void cancel() {
  211.             try {
  212.                 mmServerSocket.close();
  213.             } catch (IOException e) {
  214.             }
  215.         }
  216.     }
  217.
  218.     // 连接进程，专门用来对外发出连接对方蓝牙的请求并进行处理
  219.     // 构造函数里，通过BluetoothDevice.createRfcommSocketToServiceRecord(),
  220.     // 从待连接的device产生BluetoothSocket.然后在run方法中connect ,
  221.     // 成功后调用BluetoothChatSevice的connected() 方法。定义cancel()再关闭线程时能关闭相关Socket
  222.     private class ConnectThread extends Thread {
  223.         private final BluetoothSocket mmSocket;
  224.         private final BluetoothDevice mmDevice;
  225.
  226.         public ConnectThread(BluetoothDevice device) {
  227.             mmDevice = device;
  228.             BluetoothSocket tmp = null;
  229.             try {
  230.                 tmp = device.createRfcommSocketToServiceRecord(MY_UUID);
  231.             } catch (IOException e) {
  232.
  233.             }
  234.             mmSocket = tmp;
  235.         }
  236.
  237.         public void run() {
  238.             setName("ConnectThread");
  239.             mAdapter.cancelDiscovery();
  240.             try {
  241.                 mmSocket.connect();
  242.             } catch (IOException e) {
  243.                 connectionFailed();
  244.                 try {
  245.                     mmSocket.close();
  246.                 } catch (IOException e2) {
  247.
  248.                 }
  249.                 ChatService.this.start();
  250.                 return;
  251.                 synchronized (ChatService.this) {
  252.                     mConnectThread = null;
  253.                 }
  254.                 connected(mmSocket, mmDevice);
  255.             }
  256.         }
  257.
  258.         public void cancel() {
  259.             try {
  260.                 mmSocket.close();
  261.             } catch (IOException e) {
  262.             }
  263.         }
  264.     }
  265.
  266.     // 双方蓝牙连接后一直运行的线程。构造函数中设置输入输出流
  267.     // Run方法中使用阻塞模式的Inputstream.read()循环读取输入流，
  268.     // 然后post到UI线程中更新聊天信息。也提供了write()将聊天信息写入输出流传输至对方，传输成功后回写入UI线程，最后cancle()关闭连接的socket
  269.     private class ConnectedThread extends Thread {
  270.         private final BluetoothSocket mmSocket;
  271.         private final InputStream mmInStream;
  272.         private final OutputStream mmOutStream;
  273.
  274.         public ConnectedThread(BluetoothSocket socket) {
  275.             mmSocket = socket;
  276.             InputStream tmpIn = null;
  277.             OutputStream tmpOut = null;
  278.             try {
  279.                 tmpIn = socket.getInputStream();
  280.                 tmpOut = socket.getOutputStream();
  281.             } catch (IOException e) {
  282.
  283.             }
  284.             mmInStream = tmpIn;
  285.             mmOutStream = tmpOut;
  286.         }
  287.
  288.         public void run() {
  289.             byte[] buffer = new byte[1024];
  290.             int bytes;
  291.             while (true) {
  292.                 try {
  293.                     bytes = mmInStream.read(buffer);
  294.                     mHandler.obtainMessage(BluetoothChat.MESSAGE_READ, bytes,
  295.                             -1, buffer).sendToTarget();
  296.                 } catch (IOException e) {
  297.                     connectionLost();
  298.                     break;
  299.                 }
  300.             }
  301.         }
  302.
  303.         public void write(byte[] buffer) {
  304.             try {
  305.                 mmOutStream.write(buffer);
  306.                 mHandler.obtainMessage(BluetoothChat.MESSAGE_WRITE, -1, -1, buffer).sendToTarget();
  307.             } catch (IOException e) {
  308.             }
  309.         }
  310.     }
  311.
  312.     public void cancel() {
  313.         try {
  314.             mmSocket.close();
  315.         } catch (IOException e) {
  316.
  317.         }
  318.     }
  319. }

DeviceList 用于显示蓝牙设备列表，并返回蓝牙设备信息。DeviceList.java 的代码如下：
  1. package introduction.android.BluetoothChat;
  2.
  3. import java.util.Set;
  4.
  5. import android.app.Activity;
  6. import android.bluetooth.BluetoothAdapter;
  7. import android.bluetooth.BluetoothDevice;
  8. import android.content.BroadcastReceiver;
  9. import android.content.Context;
  10. import android.content.Intent;
  11. import android.content.IntentFilter;
  12. import android.os.Bundle;
  13. import android.view.View;
  14. import android.view.Window;
  15. import android.view.View.OnClickListener;
  16. import android.widget.AdapterView;
  17. import android.widget.ArrayAdapter;
  18. import android.widget.Button;
  19. import android.widget.ListView;
  20. import android.widget.TextView;
  21. import android.widget.AdapterView.OnItemClickListener;
  22.
  23. import introduction.android.mydbdemo.R;
  24.
  25. public class DeviceList extends Activity {
  26.     public static String EXTRA_DEVICE_ADDRESS = "device_address";
  27.     private BluetoothAdapter mBtAdapter;
  28.     private ArrayAdapter<String> mPairedDevicesArrayAdapter;
  29.     private ArrayAdapter<String> mNewDevicesArrayAdapter;
  30.
  31.     @Override
  32.     protected void onCreate(Bundle savedInstanceState) {
  33.         super.onCreate(savedInstanceState);
  34.         requestWindowFeature(Window.FEATURE_INDETERMINATE_PROGRESS);
  35.         setContentView(R.layout.device_list);
  36.         setResult(Activity.RESULT_CANCELED);
  37.
  38.         Button scanButton = (Button) findViewById(R.id.button_scan);
  39.         scanButton.setOnClickListener(new OnClickListener() {
  40.             public void onClick(View v) {
  41.                 doDiscovery();
  42.                 v.setVisibility(View.GONE);
  43.             }
  44.         });
  45.         mPairedDevicesArrayAdapter = new ArrayAdapter<String>(this, R.layout.device_name);
  46.         mNewDevicesArrayAdapter = new ArrayAdapter<String>(this, R.layout.device_name);
  47.
  48.         ListView pairedListView = (ListView) findViewById(R.id.paired_devices);
  49.         pairedListView.setAdapter(mPairedDevicesArrayAdapter);
  50.         pairedListView.setOnItemClickListener(mDeviceClickListener);
  51.
  52.         ListView newDevicesListView = (ListView) findViewById(R.id.new_devices);
  53.         newDevicesListView.setAdapter(mNewDevicesArrayAdapter);
  54.         newDevicesListView.setOnItemClickListener(mDeviceClickListener);
  55.
  56.         IntentFilter filter = new IntentFilter(BluetoothDevice.ACTION_FOUND);
  57.         this.registerReceiver(mReceiver, filter);
  58.
  59.         filter = new IntentFilter(BluetoothAdapter.ACTION_DISCOVERY_FINISHED);
  60.         this.registerReceiver(mReceiver, filter);
  61.
  62.         mBtAdapter = BluetoothAdapter.getDefaultAdapter();
  63.         Set<BluetoothDevice> pairedDevices = mBtAdapter.getBondedDevices();
  64.         if (pairedDevices.size() > 0) {
  65.             findViewById(R.id.title_paired_devices).setVisibility(View.VISIBLE);
  66.             for (BluetoothDevice device : pairedDevices) {
  67.                 mPairedDevicesArrayAdapter.add(device.getName() + "\n"
  68.                         + device.getAddress());
  69.             }
  70.         } else {
  71.             String noDevices = getResources().getText(R.string.none_paired)
  72.                     .toString();
  73.             mPairedDevicesArrayAdapter.add(noDevices);
  74.         }
  75.     }
  76.
  77.     @Override
  78.     protected void onDestroy() {
  79.         super.onDestroy();
  80.         if (mBtAdapter != null) {
  81.             mBtAdapter.cancelDiscovery();
  82.         }
  83.         this.unregisterReceiver(mReceiver);
  84.     }
  85.
  86.     private void doDiscovery() {
  87.         setProgressBarIndeterminateVisibility(true);
  88.         setTitle(R.string.scanning);
  89.         findViewById(R.id.title_new_devices).setVisibility(View.VISIBLE);
  90.         if (mBtAdapter.isDiscovering()) {
  91.             mBtAdapter.cancelDiscovery();
  92.         }
  93.         mBtAdapter.startDiscovery();
  94.     }
  95.
  96.     private OnItemClickListener mDeviceClickListener = new OnItemClickListener() {
  97.         public void onItemClick(AdapterView<?> av, View v, int arg2, long arg3) {
  98.             mBtAdapter.cancelDiscovery();
  99.
  100.             String info = ((TextView) v).getText().toString();
  101.             String address = info.substring(info.length() - 17);
  102.             Intent intent = new Intent();
  103.             intent.putExtra(EXTRA_DEVICE_ADDRESS, address);
  104.             setResult(Activity.RESULT_OK, intent);
  105.             finish();
  106.         }
  107.     };
  108.
  109.     private final BroadcastReceiver mReceiver = new BroadcastReceiver() {
  110.         @Override
  111.         public void onReceive(Context context, Intent intent) {
  112.             String action = intent.getAction();
  113.             if (BluetoothDevice.ACTION_FOUND.equals(action)) {
  114.                 BluetoothDevice device = intent
  115.                         .getParcelableExtra(BluetoothDevice.EXTRA_DEVICE);
  116.                 if (device.getBondState() != BluetoothDevice.BOND_BONDED) {
  117.                     mNewDevicesArrayAdapter.add(device.getName() + "\n"
  118.                             + device.getAddress());
  119.                 }
  120.             } else if (BluetoothAdapter.ACTION_DISCOVERY_FINISHED.equals(action)) {
  121.                 setProgressBarIndeterminateVisibility(false);
  122.                 setTitle(R.string.select_device);
  123.                 if (mNewDevicesArrayAdapter.getCount() == 0) {
  124.                     String noDevices = getResources().getText(
  125.                             R.string.none_found).toString();
  126.                     mNewDevicesArrayAdapter.add(noDevices);
  127.                 }
  128.             }
  129.         }
  130.     };
  131. }
< 上一页Android蓝牙开发 WIFI是什么下一页 >
